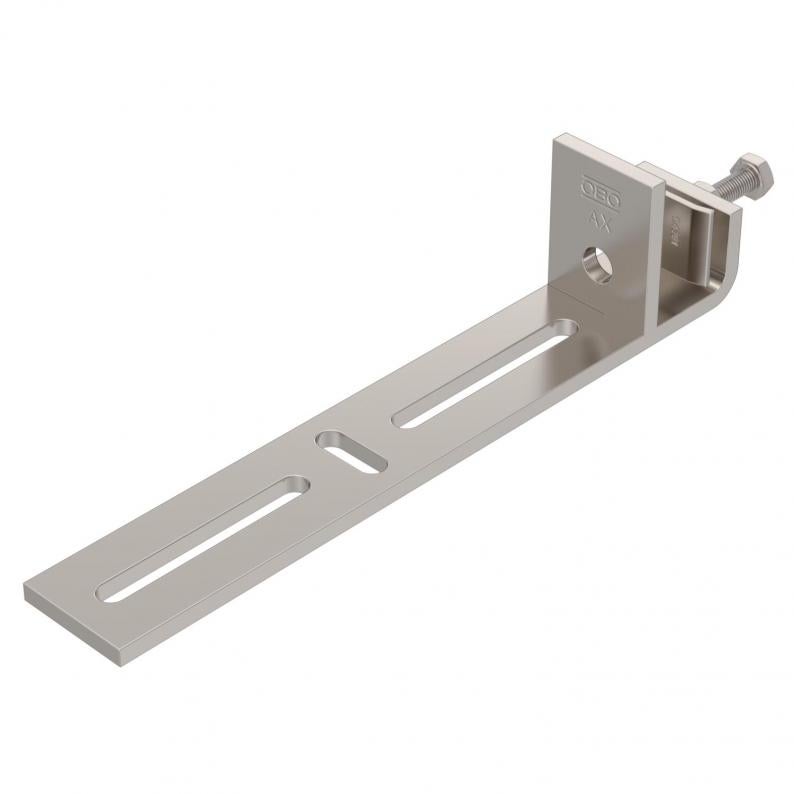

Beam clamp, vertical, A2
Type BFK S 200 A2
|Item no. 6003952
|EAN 4012197477493
Item no. / Type
Smallest selling unit: 10 Tükki
10Tükki
Tükki
Description
Beam clamp for mounting light components on vertical steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is vertical.
Technical data
Mõõtmed
| Pikkus | 248 mm |
|---|---|
| Laius | 210 mm |
| Kõrgus | 58 mm |
Tehnilised andmed
| Roostevaba teras, peitsitud | jah |
|---|---|
| Materjali paksus | 6 mm |
| Rakendustemperatuuri vahemiku min | -20 °C |
| Rakendustemperatuuri vahemiku max | 120 °C |
| Mõõde | 254x58x40 |
| Pinnakate | hele, järeltöödeldud |
| Materjal | Roostevaba teras 1.4301 |
| Värv | roostevaba teras |
Downloads
0 selected
Tooteleht (1)
Juhised ja spikrid (1)
Toote pildid (2)
Variants
Type
Item no.
BFK S 100 A2
6003950
BFK S 200 A2
6003952
BFK S 250 A2
6003954
BFK S 300 A2
6003956
BFK S 100 A2
Item no.
6003950
BFK S 200 A2
Item no.
6003952
BFK S 250 A2
Item no.
6003954
BFK S 300 A2
Item no.
6003956
