Beam clamp horizontal FT
Type BFK W 100 FT
|Item no. 6003916
|EAN 4012197477288
Item no. / Type
Smallest selling unit: 10 Tükki
10Tükki
Tükki
Description

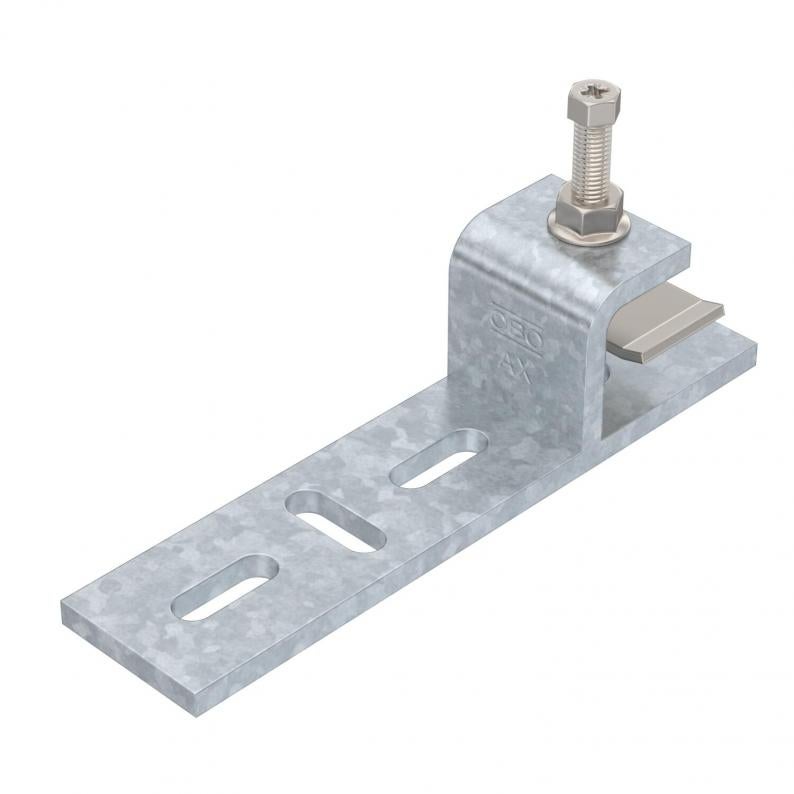

Beam clamp for mounting light components on horizontal steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is horizontal.
Technical data

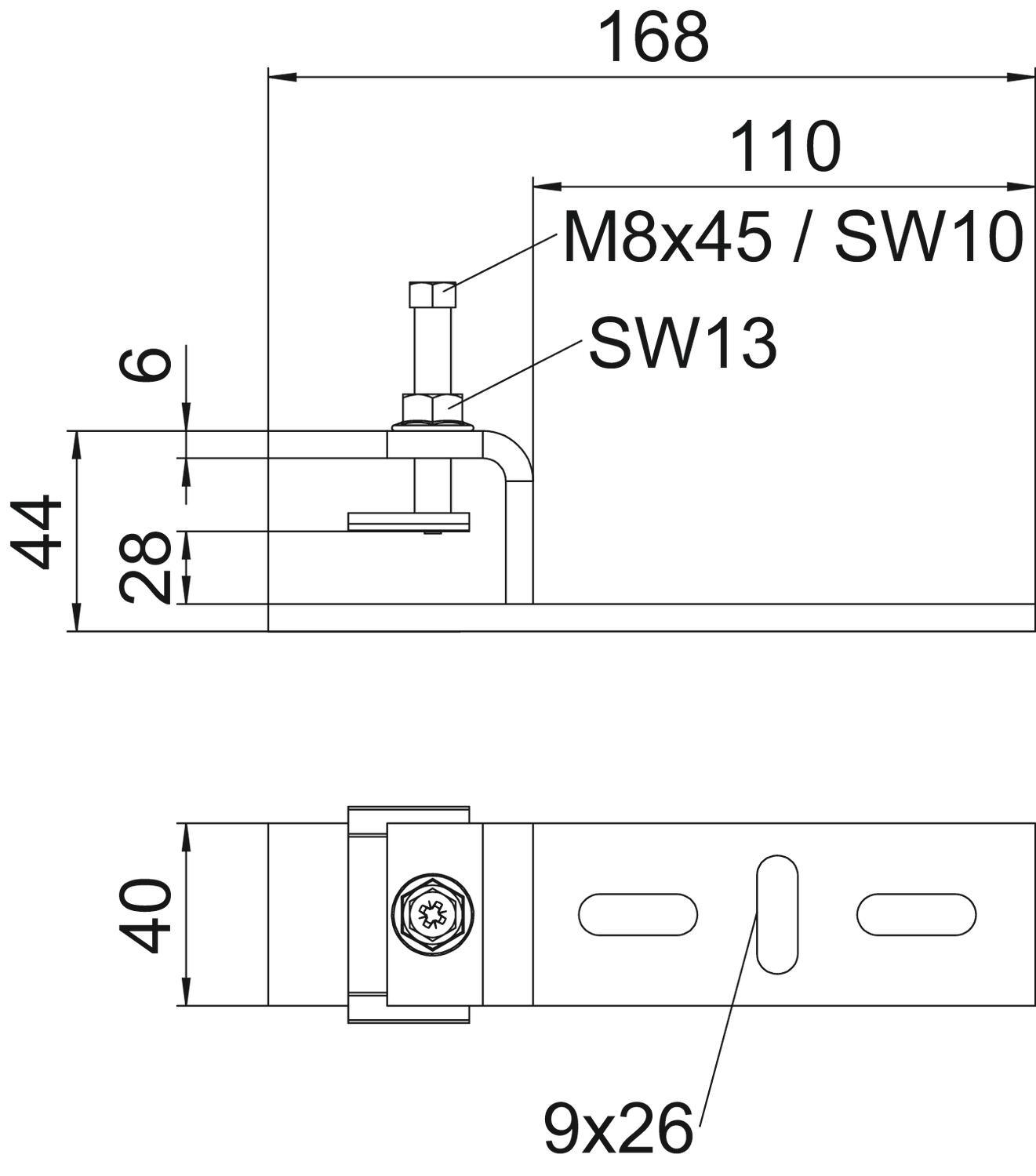

Mõõtmed
| Pikkus | 168 mm |
|---|---|
| Laius | 110 mm |
| Kõrgus | 32 mm |
Tehnilised andmed
| Roostevaba teras, peitsitud | ei |
|---|---|
| Materjali paksus | 6 mm |
| Rakendustemperatuuri vahemiku min | -20 °C |
| Rakendustemperatuuri vahemiku max | 120 °C |
| Mõõde | 168x44x40 |
| Pinnakate | Kuumtsingitud kastmismeetodil |
| Materjal | Teras |
| Värv | tsink |
Downloads
0 selected
Tooteleht (1)
Juhised ja spikrid (1)
Toote pildid (2)
3D-andmete allalaadimised (1)
Variants
Type
Item no.
BFK W 100 FT
6003916
BFK W 200 FT
6003918
BFK W 250 FT
6003920
BFK W 300 FT
6003922
BFK W 100 FT
Item no.
6003916
BFK W 200 FT
Item no.
6003918
BFK W 250 FT
Item no.
6003920
BFK W 300 FT
Item no.
6003922
